Thunderbolt™ 3 PD Dock

DBB1230

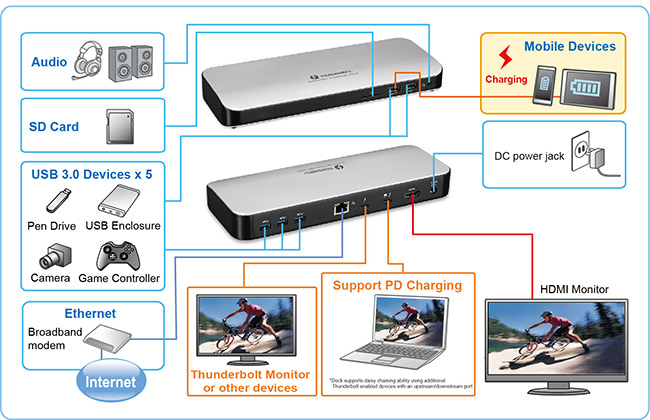

The Thunderbolt 3 PD Dock is designed for extra connectivity demands. With this docking station, you can extend the connection of a computer to more USB peripherals such as Ethernet network, the speaker and the microphone. Adopting PD Charging technology, upstream charging function through Thunderbolt interface, you can charge the laptop. In addition, the driver is included in the docking station; therefore, you do not need to install extra drivers. Just plug and play; then you are connected with Thunderbolt embedded device.

The docking station is also equipped with video output. With HDMI port, you can mirror your primary screen or extend the desktop allowing visibility of more applications at the same time. With enhanced expansion capability and video output function, this docking station is the most versatile accessory that also complements your home or office space.

* Incorporates HDMI® technology


Features


  • Slim and fashionable design
  • Thunderbolt 3 technology
  • Upstream Port
    • Type-C Thunderbolt 3
  • Downstream Port
    • USB 3.0 Type-A female x5 (One port supports BC 1.2)
  • Video output
    • HDMI output supports resolution up to 4K@60Hz
  • LAN
    • RJ45 Gigabit Ethernet
  • Upstream PD Charging: 5/9/15/20V,up to 60W
  • Combo audio jack
  • Support SD 3.0 card reader


Specification


User Interface

Upstream

Type-C Thunderbolt 3 x2 (only one port supports PD charging)

Downstream

HDMI female connector x1

USB 3.0 female connector x5 , one port supports BC 1.2

RJ45 connector x1

Combo Audio Jack (IN/OUT) x1

Video

ResolutionHDMI2.0: 4K@60Hz
AudioChannel2.1 CH
EthernetType10/100/1000 BASE-T
Power

Power Mode

Self-powered

Power Adapter

Input: AC 100-240V
Output: DC 20V/6.75A

Working Environment

Operation Temperature

0~40 degree

Storage Temperature

-20~70 degree

Compliance

CE, FCC

*Specification is subject to change without further notice.
